Layflat Wedding Album Binder Machine

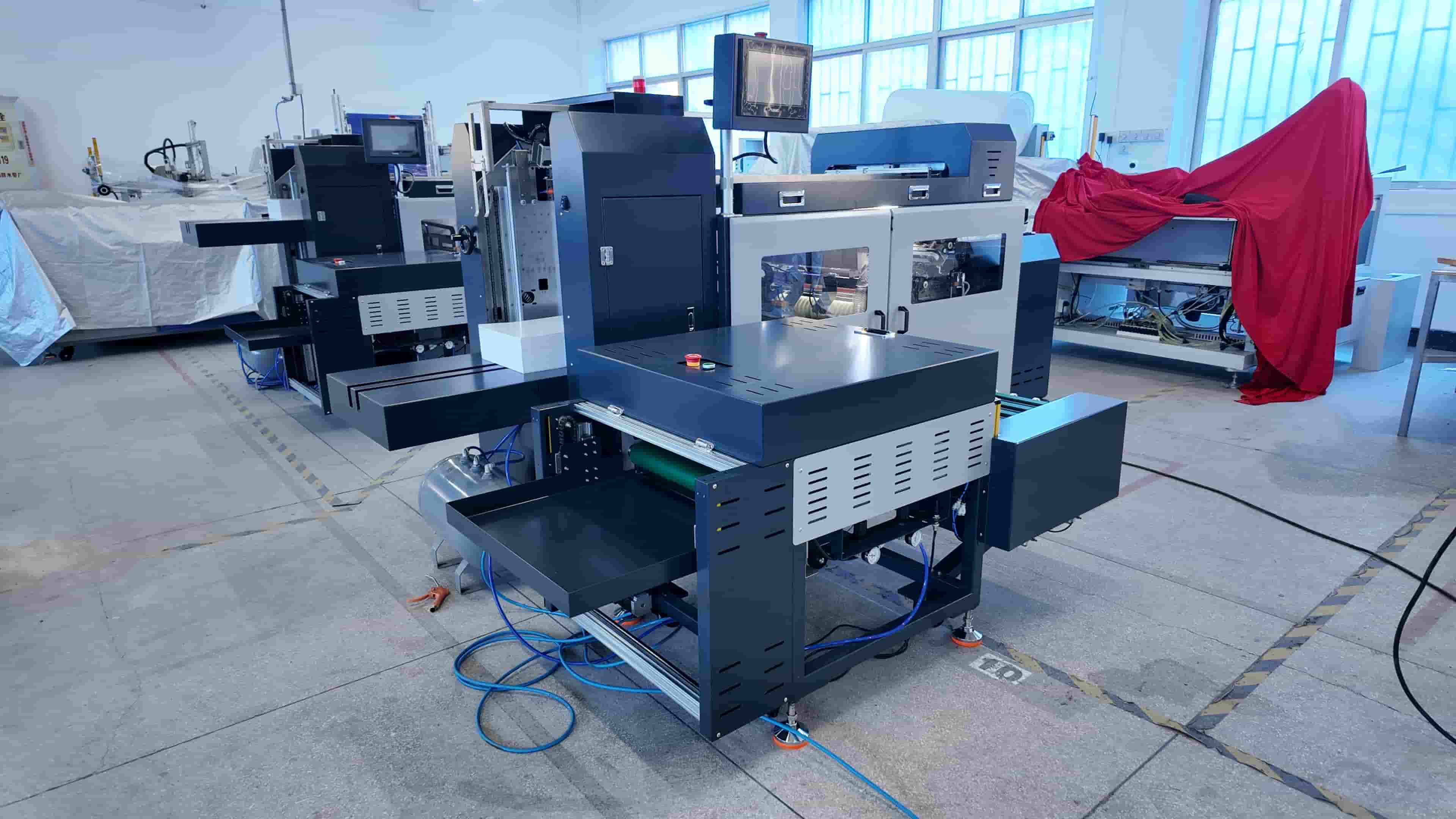

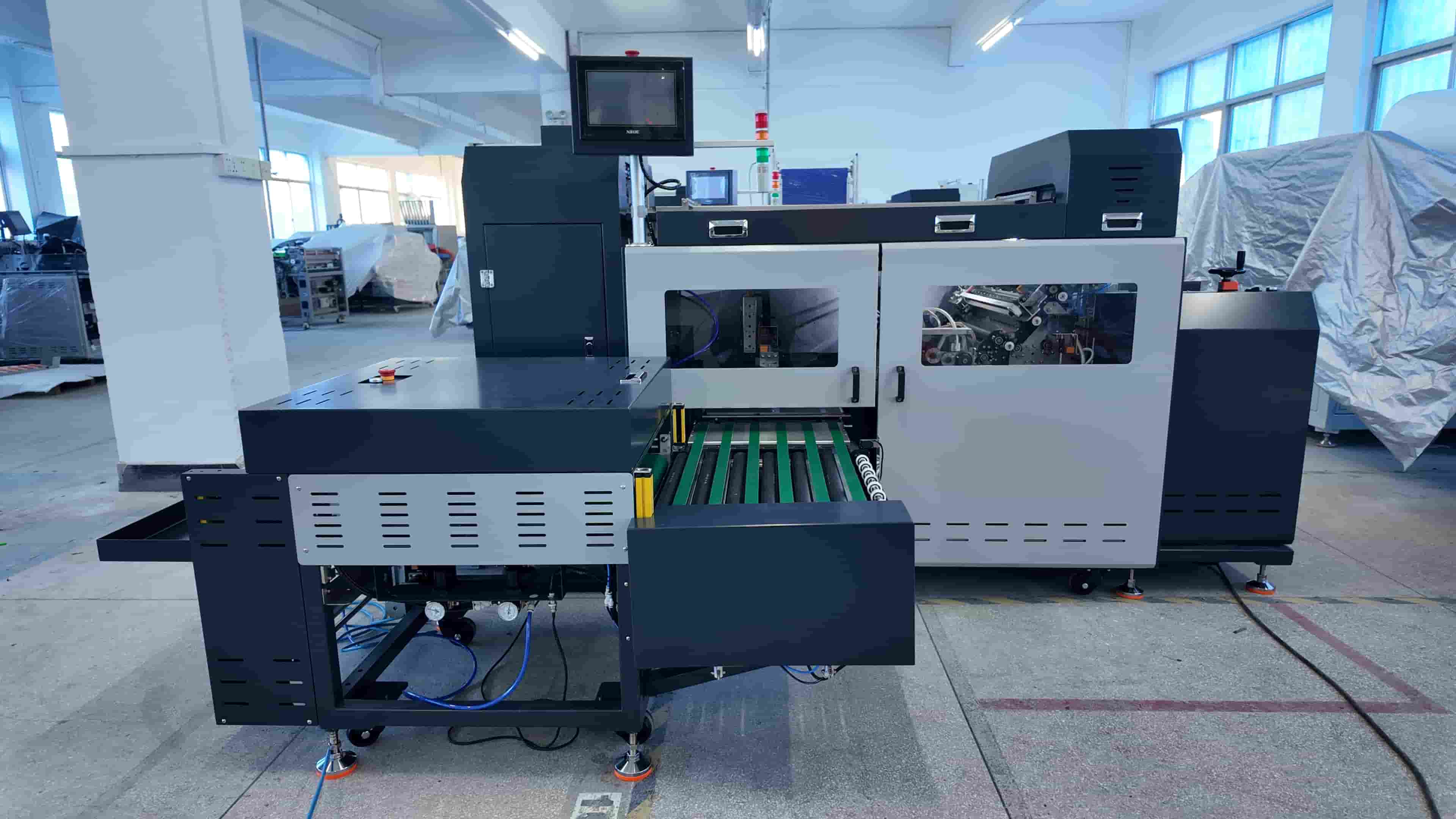

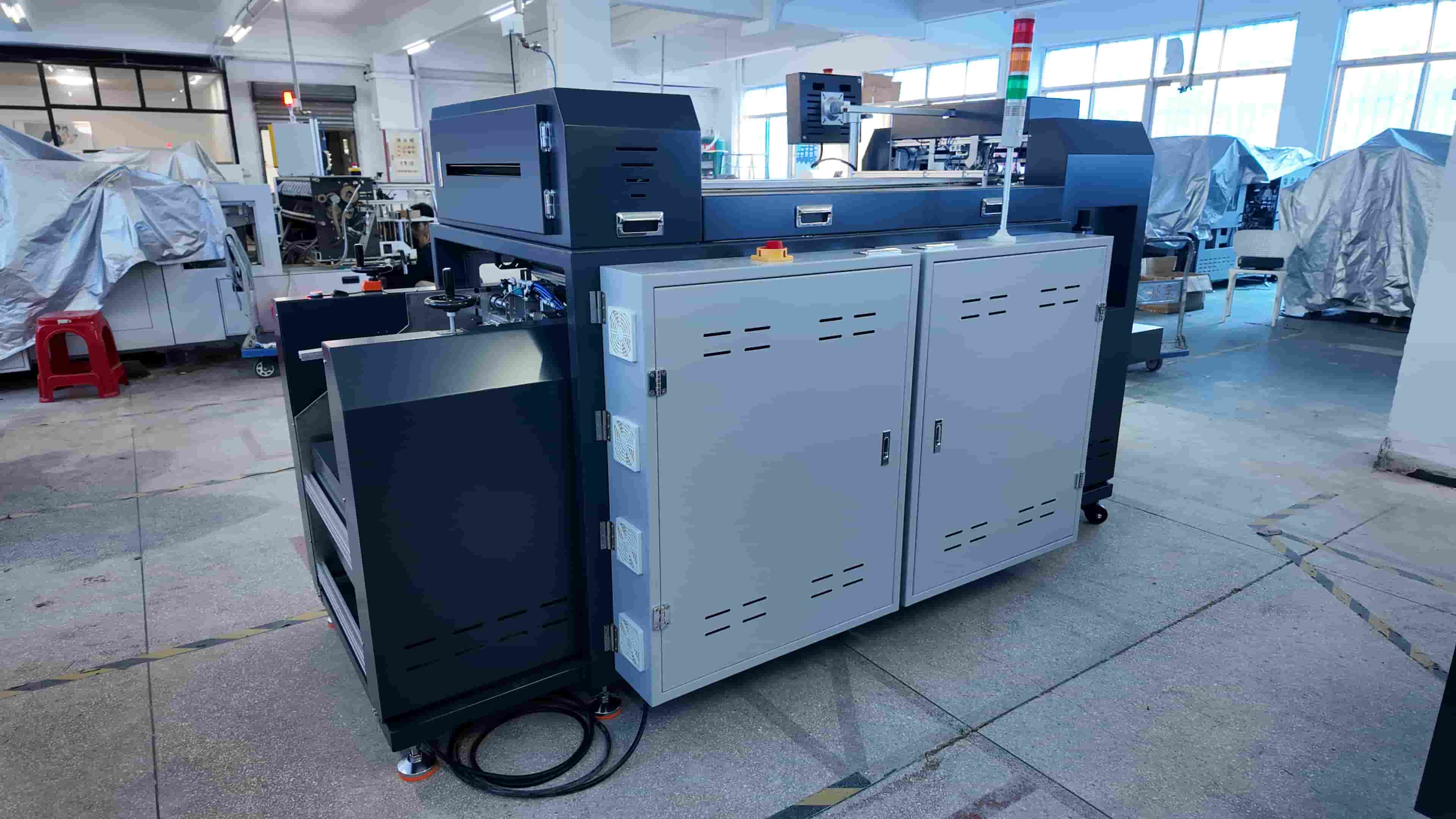

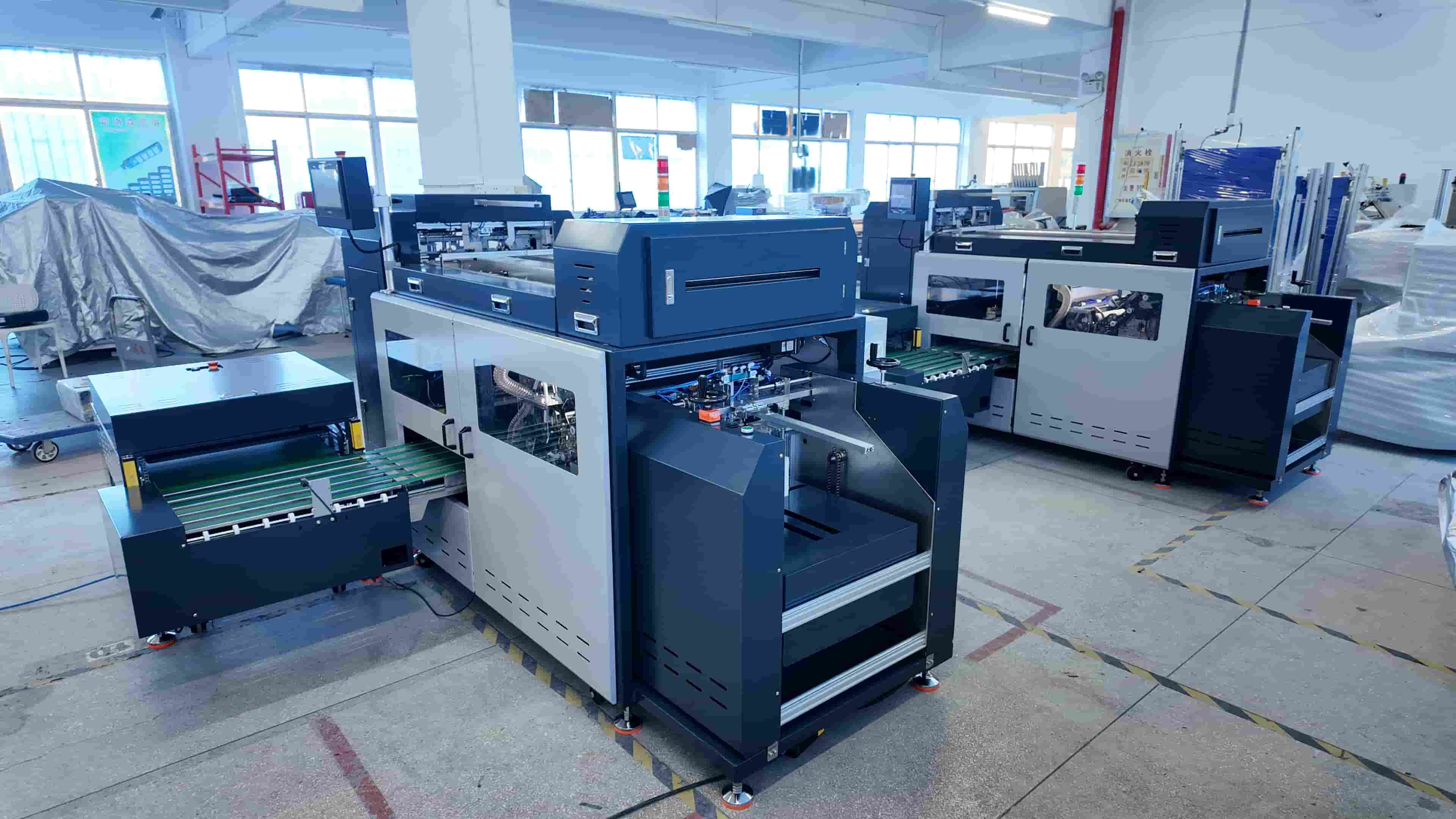

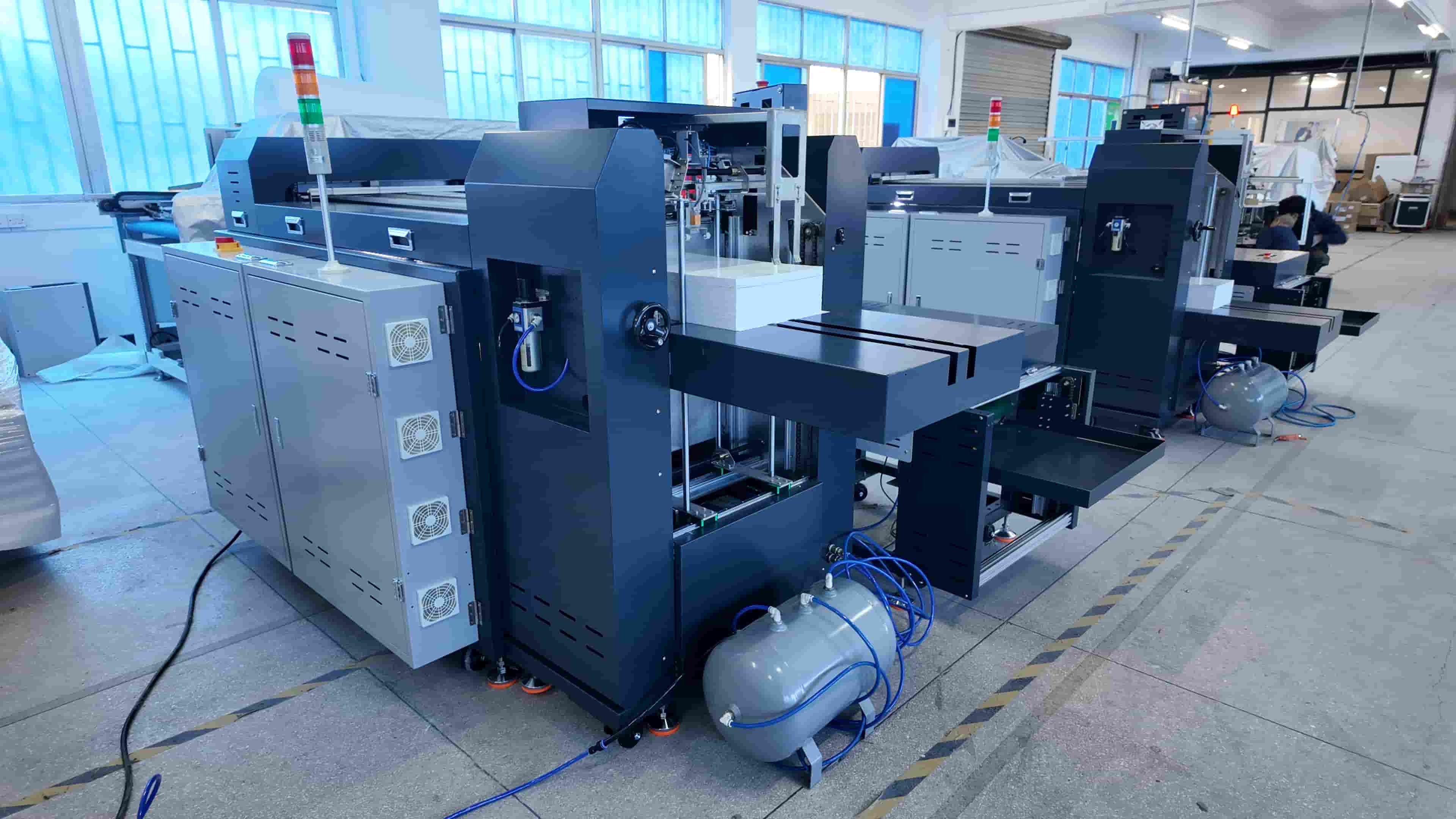

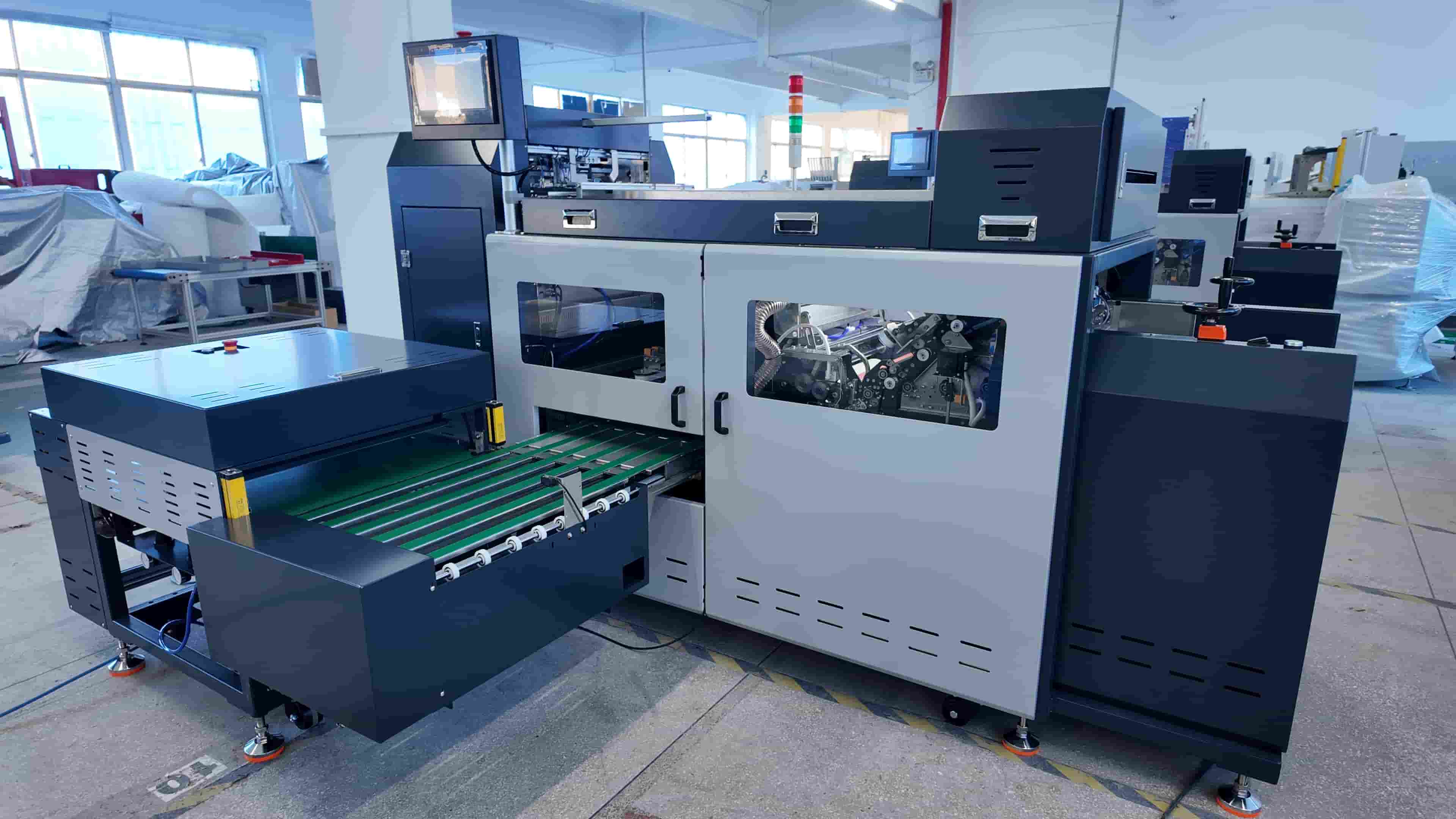

E1800 All-In is a fully automatic book block system which produces Lay Flat book blocks from single sheets. It can make photo book not only by gluing paper back to back but also by inserting cardboard between sheets. It is all in one station, creaser and folder are included，it is compact and can run in small place.

Key Benefits:

 All in one system: Integrated auto feeding, gluing, assembling ;

 Easy to operate via touch screen;  Flexible production for different sizes: 6”x6” to 18”x 18”;

 Layflat binding technology;

 Hotmelt gluing technology: cheaper cost and faster delivery;

FULLY AUTOMATED PRODUCTION:

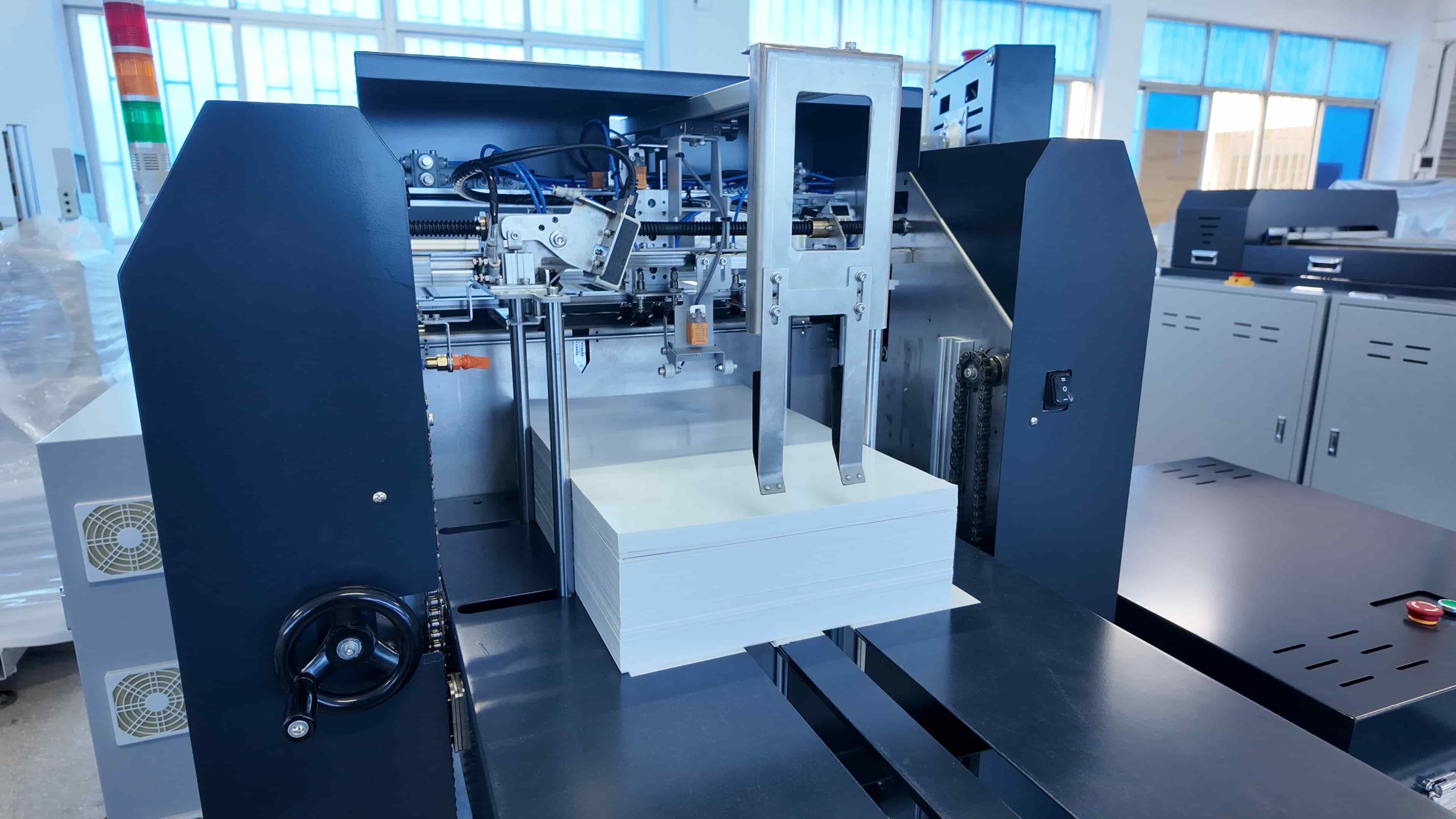

1) Automatic Paper Transfer

2) Automatic Sandwich Transfer

3) Automatic Creasing/Folding

4) Automatic Gluing

5) Automatic Rolling Back

6) Automatic Mounting

7) Automatic Fault Detection

8) Automatic Double-Sheet Error Detection

9) Automatic Inline Pneumatic Flat-Pressing

FEATURES: Simple operation State-of-the-Art software control; Visual touch screen operation panel,

PLC intelligent control system Strong Paper compatibility Multiple paper channels, printing photo paper, synthetic paper,

photographic paper, copperplate paper and art paper Speed Fastest speed 1200 sheets per hour ALL-IN-ONE Automated Design Pressing, Folding, Gluing, Mounting Flexible Range Max Album Size Closed :18"X18" 460mmx460mm Max Album Size Open :18"X36" 460mmx915mm

Min. Album Size Closed: 6"X6" 152mmx152mm Min. Album Size Open: 6"X12" 152mmx305mm

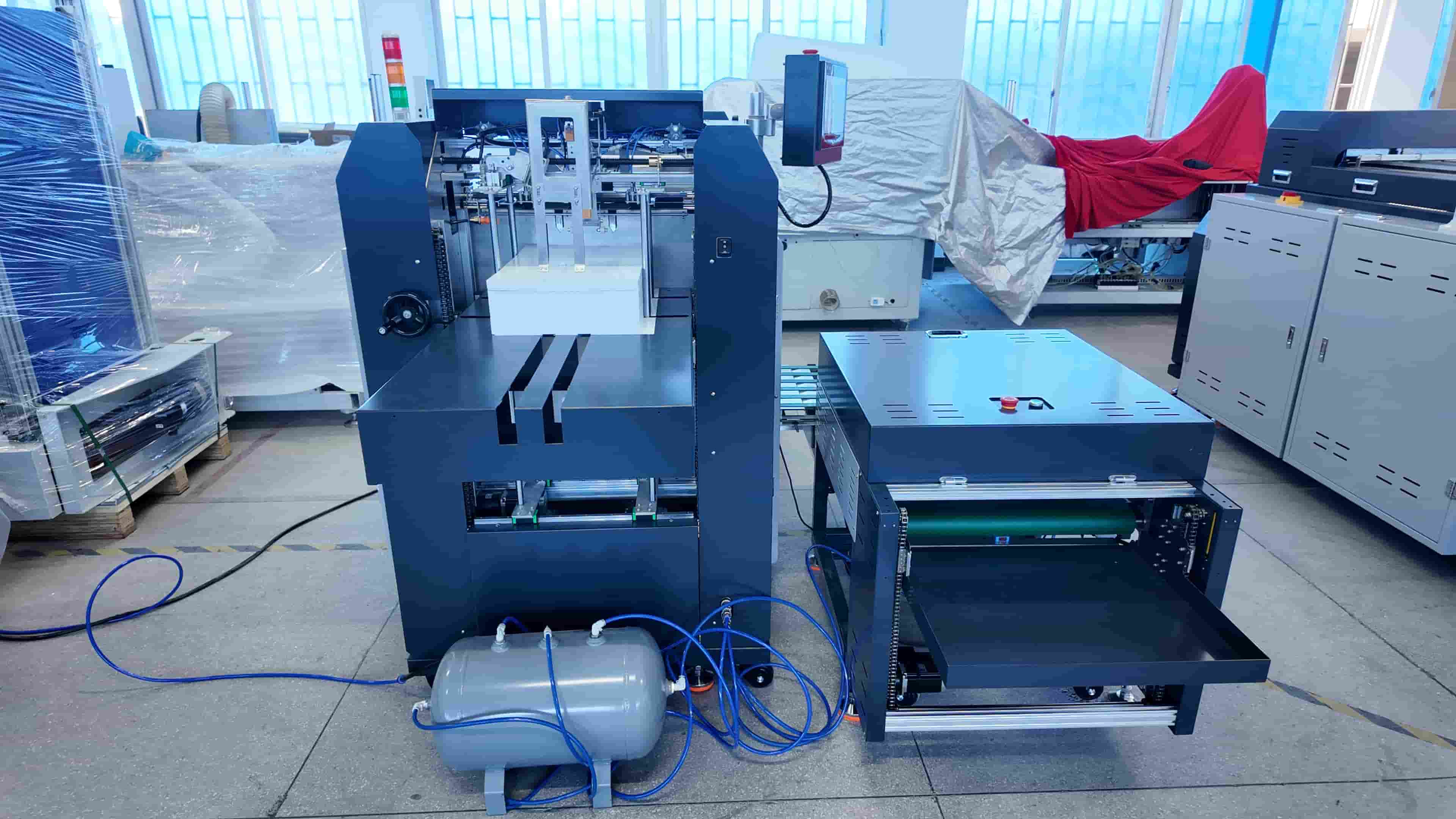

INLINE PNEUMATIC FLAT PRESSING: The machine model is complemented by an inline "Pneumatic Flat Pressing Machine" after the book block is made.

Features Book block height： 6”-13” ( 152mm-330mm)

Book block width (open) 12”-36” ( 305mm-915mm)

Maximum thickness of book block 50mm

Cardboard With or without Glue Hot melt

Thickness of cardboard 0.35mm -1mm

Thickness of paper 0.15mm-0.3mm

Speed 1000 sheets /hour ( without cardboard), 1200 sheets /hour ( with cardboard)

Power Supply 220V 50HZ Single phase

Maximum power consumption 2000W

Machine dimension 1.99 m(L) x 1.00 m(W) x 1.45 m(H)

Weigh(approx.): 400kg

Air compressor 0.6-0.7mpa, >180L/mim

1. Full-Automatic Production Process
2. Realizes one-stop automatic operation from album sheet feeding, precise positioning, hot melt gluing, page pressing to preliminary trimming. No need for frequent manual intervention, greatly reducing labor intensity and operation errors.
3. Seamless Connection with Supporting Equipment

   Compatible with automatic three-side cutters, hardcover case makers and album insert sheet feeders to form a complete intelligent production line. Achieves smooth workflow connection and improves overall production efficiency by 30% - 50%.
4. High-Speed & High-Precision Operation

   With a maximum speed of up to 1800 rounds per hour, it can easily handle large-volume orders. The precision positioning system ensures the alignment error of album pages is less than 0.5mm, and the finished products have neat edges and consistent flatness.
5. Multi-Scene Versatility

   Flexible adaptation to the production of various types of albums, including layflat wedding albums, hardcover family photobooks, personalized corporate photo albums, etc. Supports different sizes and thicknesses of album sheets, with adjustable parameters for diversified production needs.
6. Intelligent Control & Operation

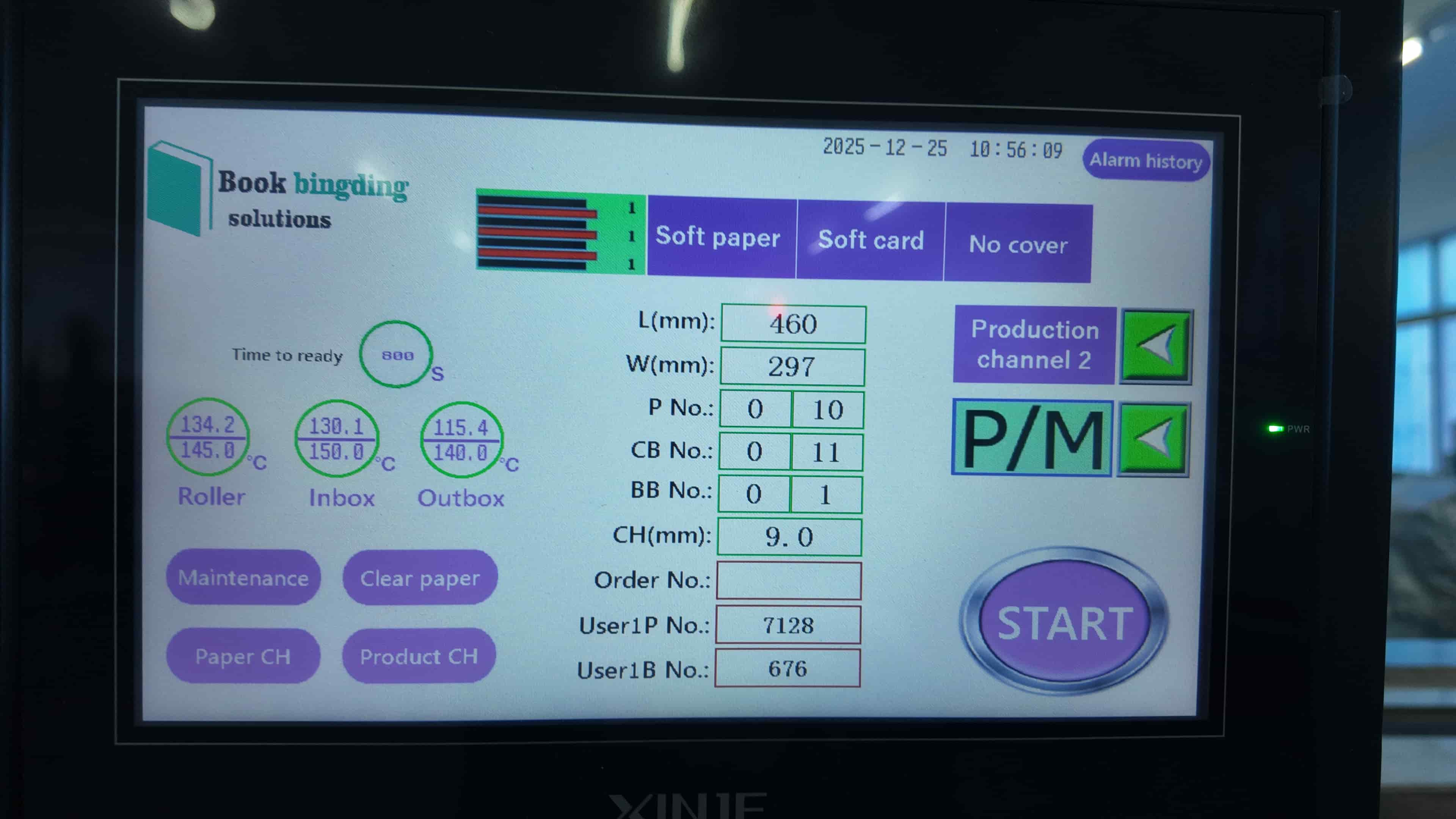

   Equipped with a user-friendly touch screen control system, which can store multiple production templates. One-click startup is available, and real-time production data (output, speed, fault prompts) can be displayed. Fault self-diagnosis function reduces maintenance time.
7. Energy-Saving & Stable Performance

   Adopts advanced frequency conversion technology to save energy by 20% compared with traditional equipment. The heavy-duty frame design ensures stable operation during long-term continuous production, with low noise and long service life of key components.
