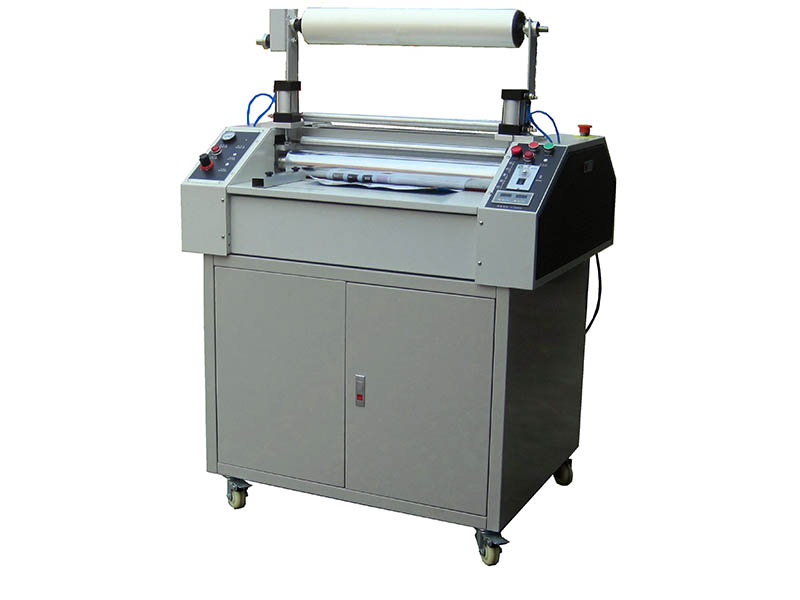

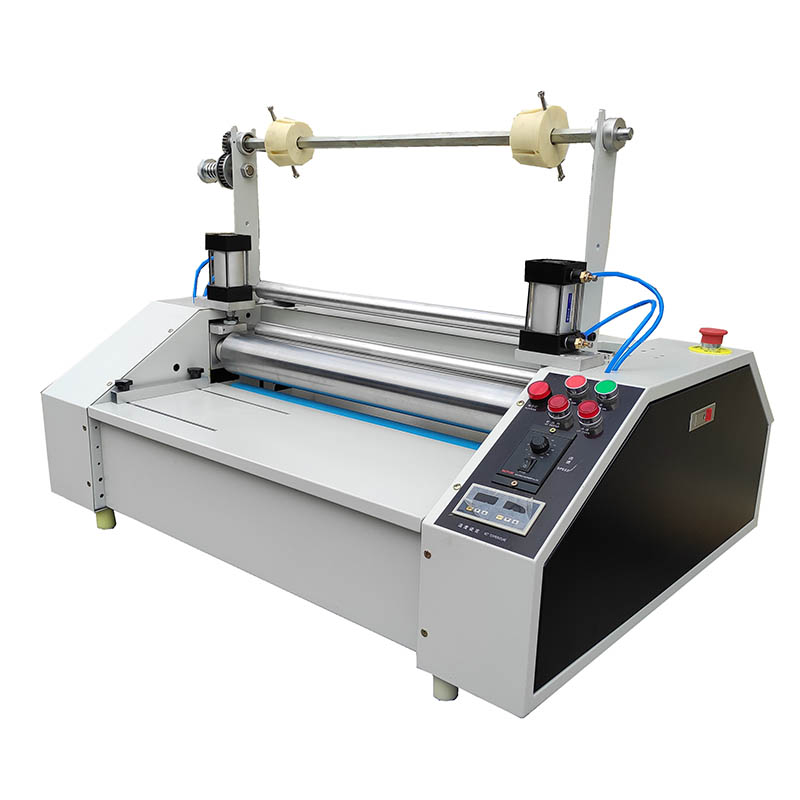

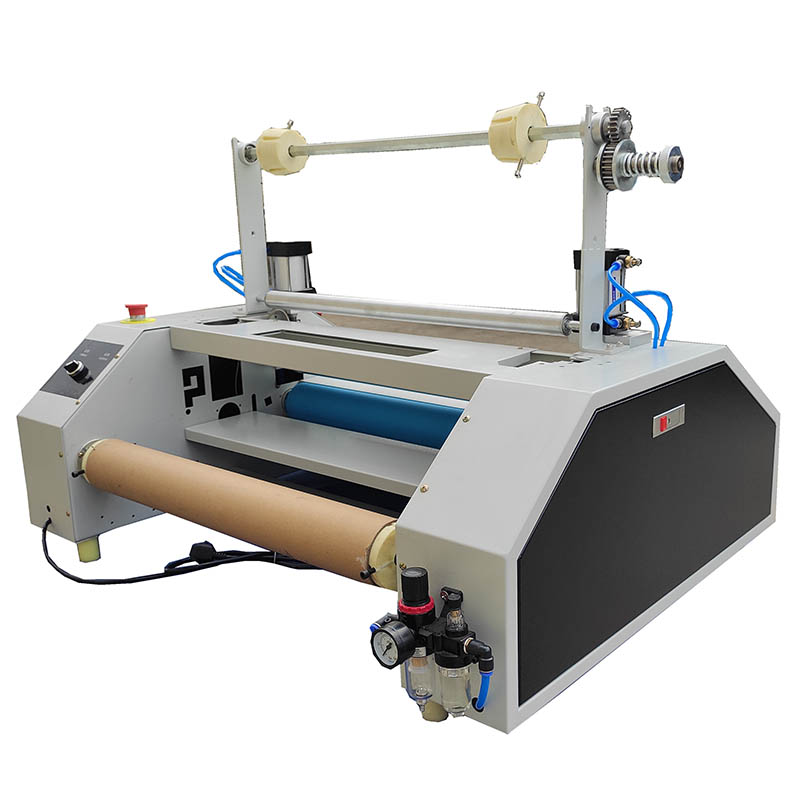

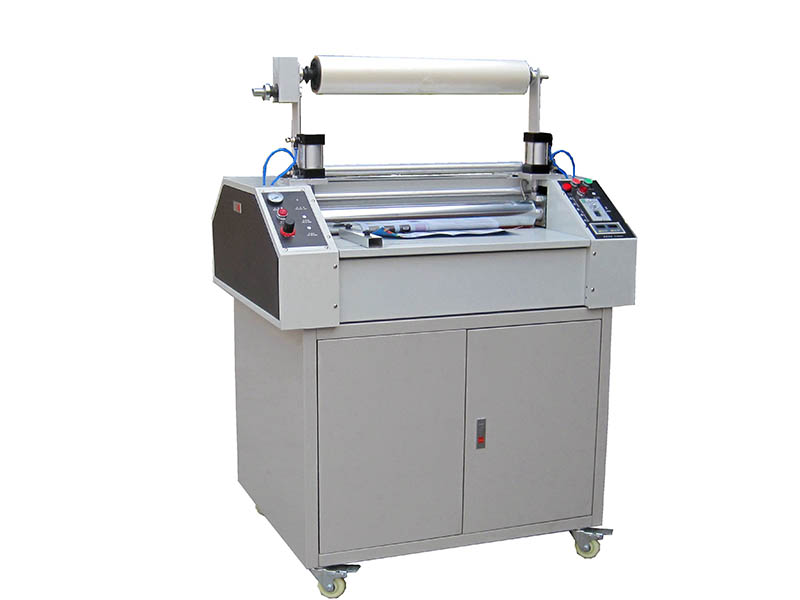

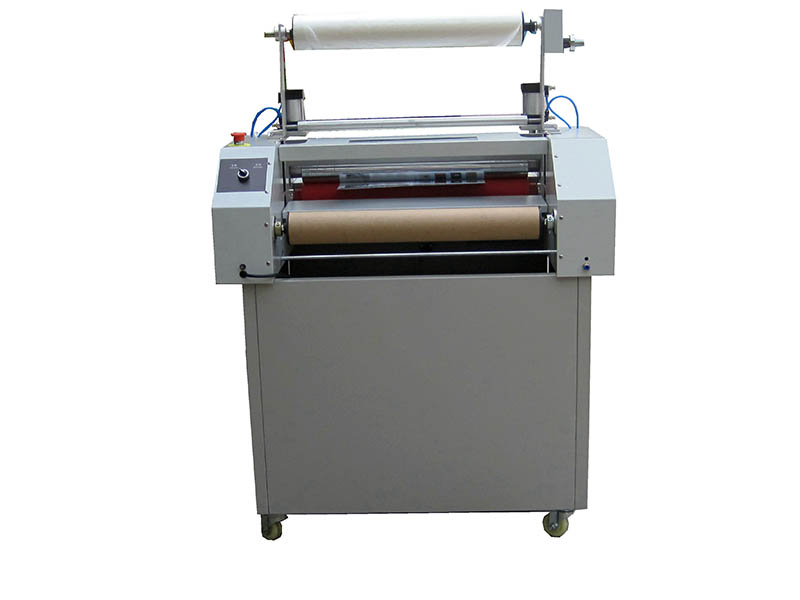

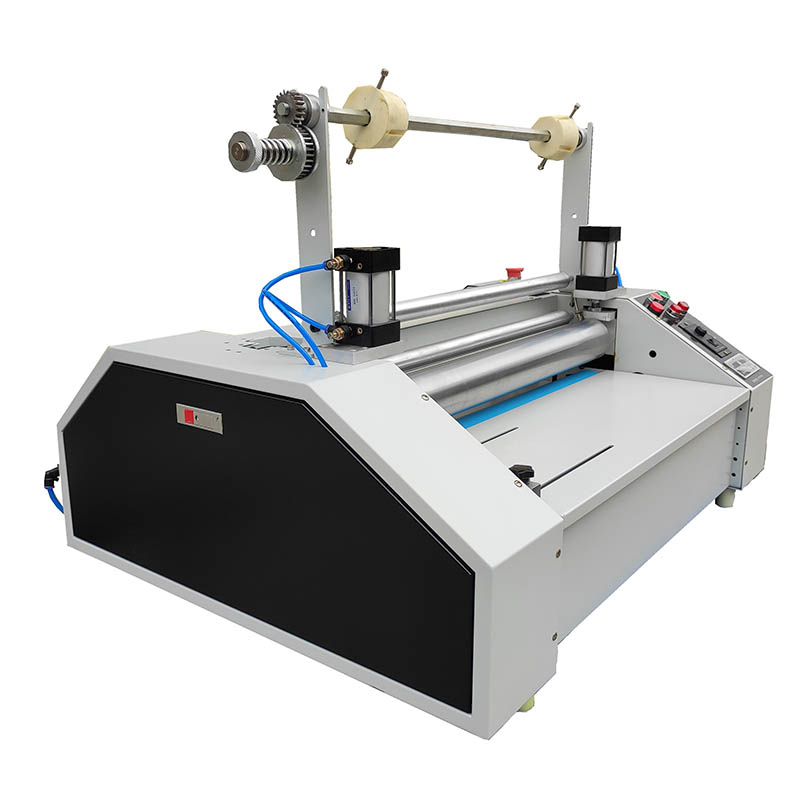

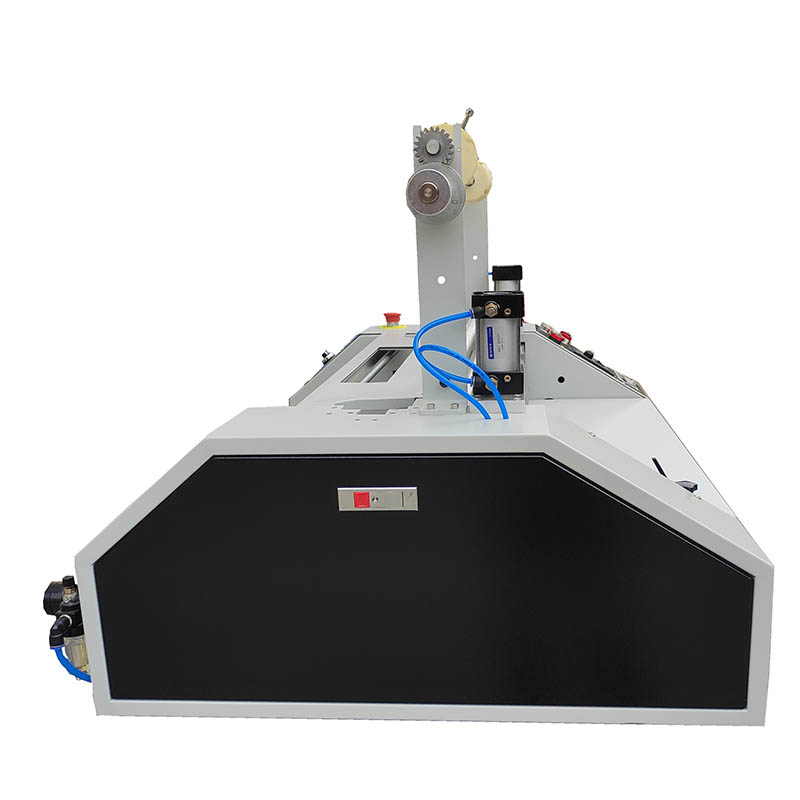

Hot laminating machine

Specification

650

800

Max working width

630mm

780mm

Max working thickness

20mm

20mm

Temperature range

70-80°C

70-80°C

Speed

10m/min

8m/min

Rod diameter

80MM

80MM

Power supply

AC220V/50HZ

AC220V/50HZ

Power consumption

2KW

2.5KW

Machine dimension

1030x700x700MM

1180x700x700MM

N/G

86.5KG/120KG

104KG/159KG

Packing size

1110x870x680MM

1250x870x680MM

Structural characteristics:

1. This machine is   using internal heating of plating oil tube, uniform heating. It uses bopp   film as materials. After the film laminating, the product is highly   transparent, viscous, nontoxic and environment-friendly with a strong 3-D   appeal and no smell, snowflake spots and bubbles.

2. It can be   widely used in Photos, packing box, food box, books and periodicals.

3. It can laminate   both plain and pattern. High efficiency, save time and money.

Install   with tension device.
