Double Stations A4 Notebook Case Making Machine Leather Diaries Case Making Machine

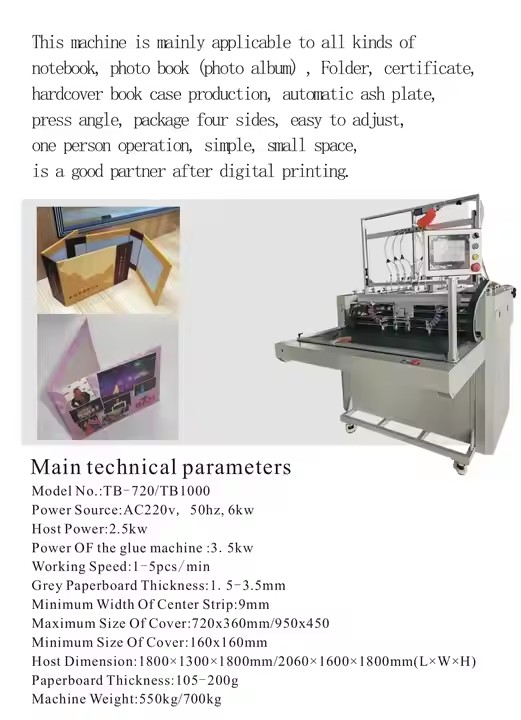

Model No.:
Power Source:
Host Power:2.5kw
Power OF the glue machine :
Working Speed:
Grey Paperboard Thickness:
Minimum Width Of Center Strip:
Maximum Size Of Cover:
Minimum Size Of Cover:
Host Dimension:
Paperboard Thickness:
Machine Weight:
TB-720/TB1000
AC220v, 50hz, 6kw
3.5kw
1-5pcs/min
1.5-3.5mm
9mm
720x360mm/950x450
160x160mm
1800×1300×1800mm/2060×1600×1800mm(L×W×H)
105-200g
550kg/700kg

Advantage:
1. Auto in delivering and positioning the cardboards;
2. Adopting PLC operating system
3. Use hot glue (animal glue / Jelly glue)
4. Easy and quick in adjusting the size of cardboard with hand wheel system, instead of tools
5. Quick in adjusting the thickness
6. With high precision gluing roller, the paper is evenly glued and well folded ;
7. Light Tube inside the working table makes the position more accurate.
8. Advanced folding system without the glue sticking problem.
9. With self-developing Ultility patents.
