Heavy Duty Bookbinding Hardcover Book Casing in Machine for Print Company

BS18 is a fully automatic book block system which produces Lay Flat book blocks from single sheets. It can make photo book not only by gluing paper back to back but also by inserting cardboard between...

  • Detailed information

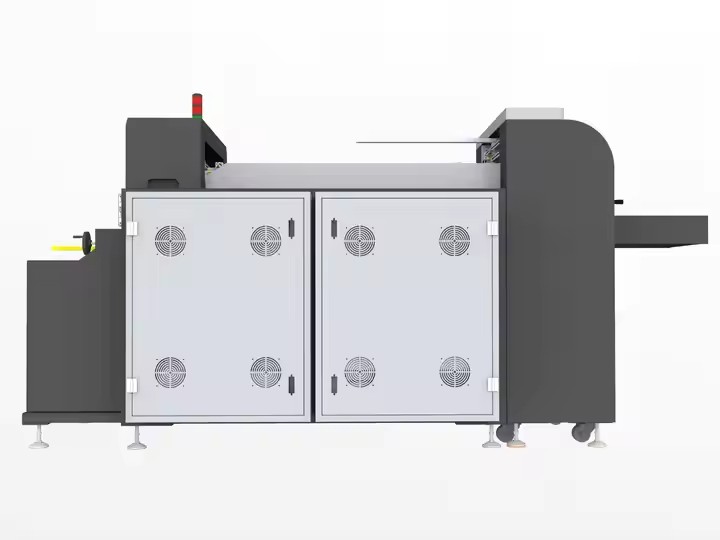

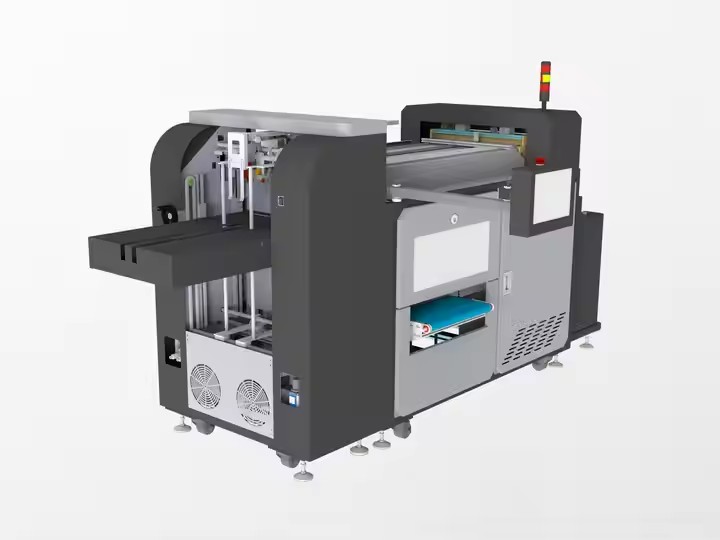

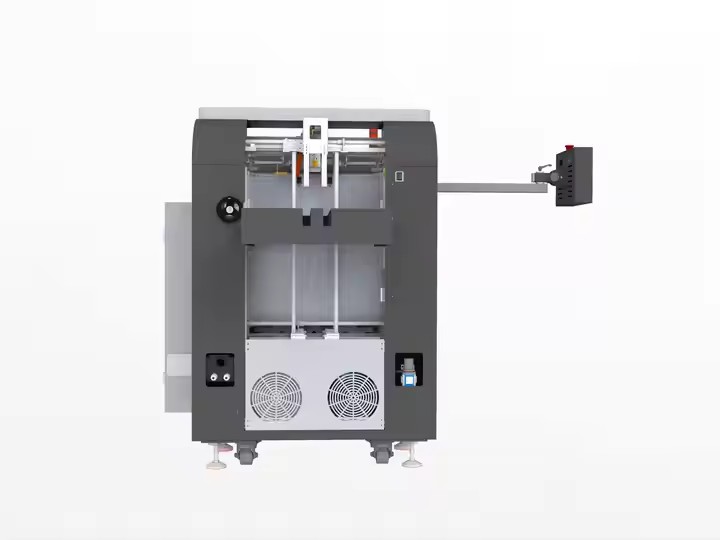

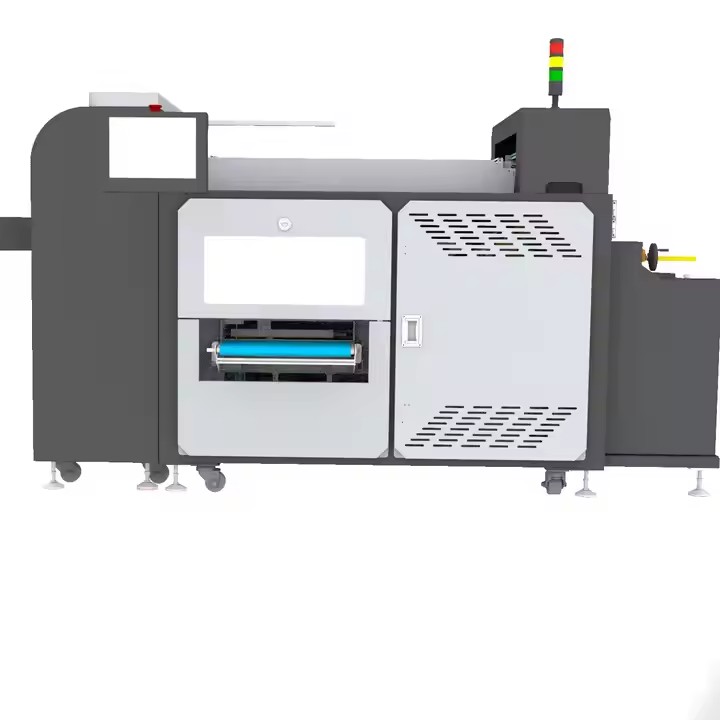

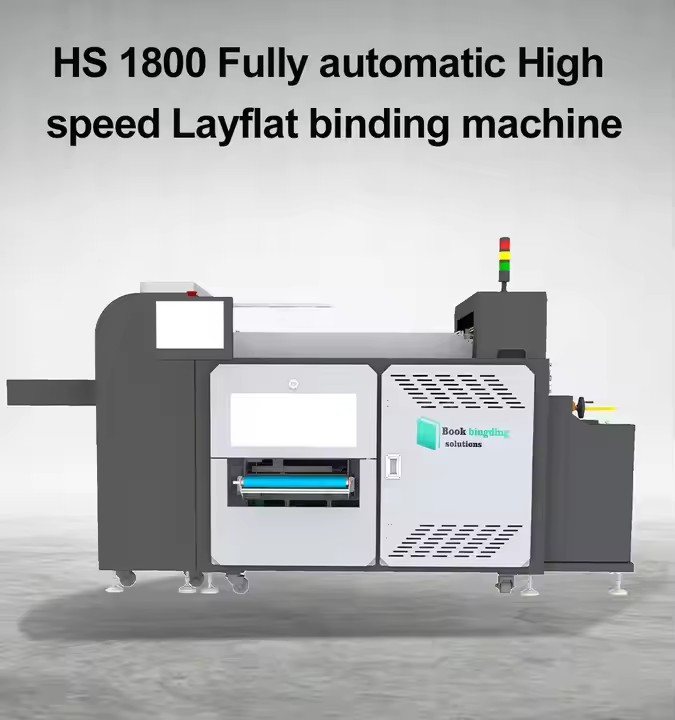

      BS18 Full Automatic Photo Book Maker

      BS18 is a fully automatic book block system which produces Lay Flat book blocks from single sheets. It can make photo book not only by gluing paper back to back but also by inserting cardboard between sheets.

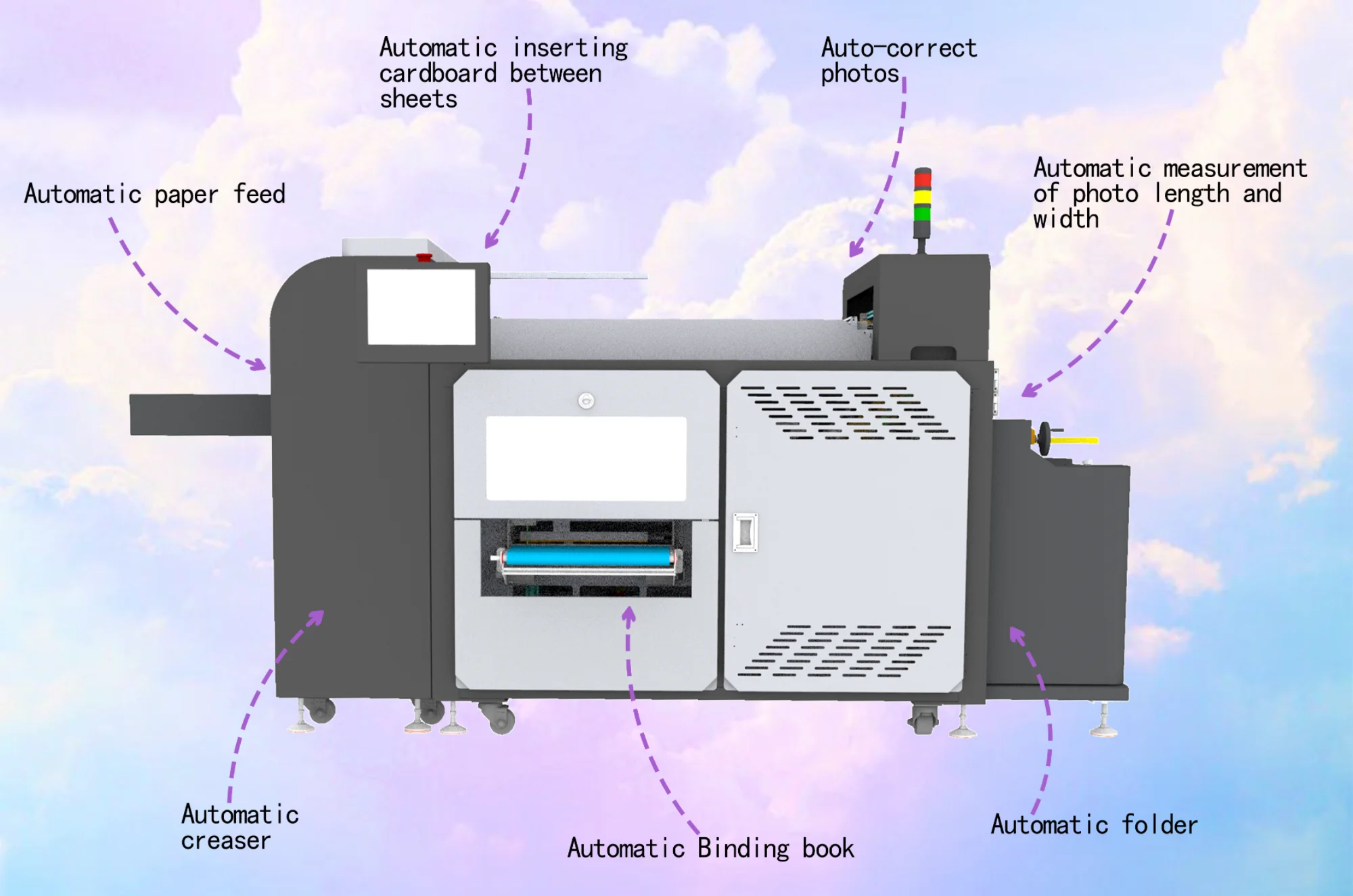

      Key Benefits: All in one system: Integrated auto feeding, gluing, assembling ; Easy to operate via touch screen;
      Flexible production for different sizes: 6”x6” to 12”x 18”; Layflat binding technology; Hotmelt gluing technology: cheaper cost and faster delivery

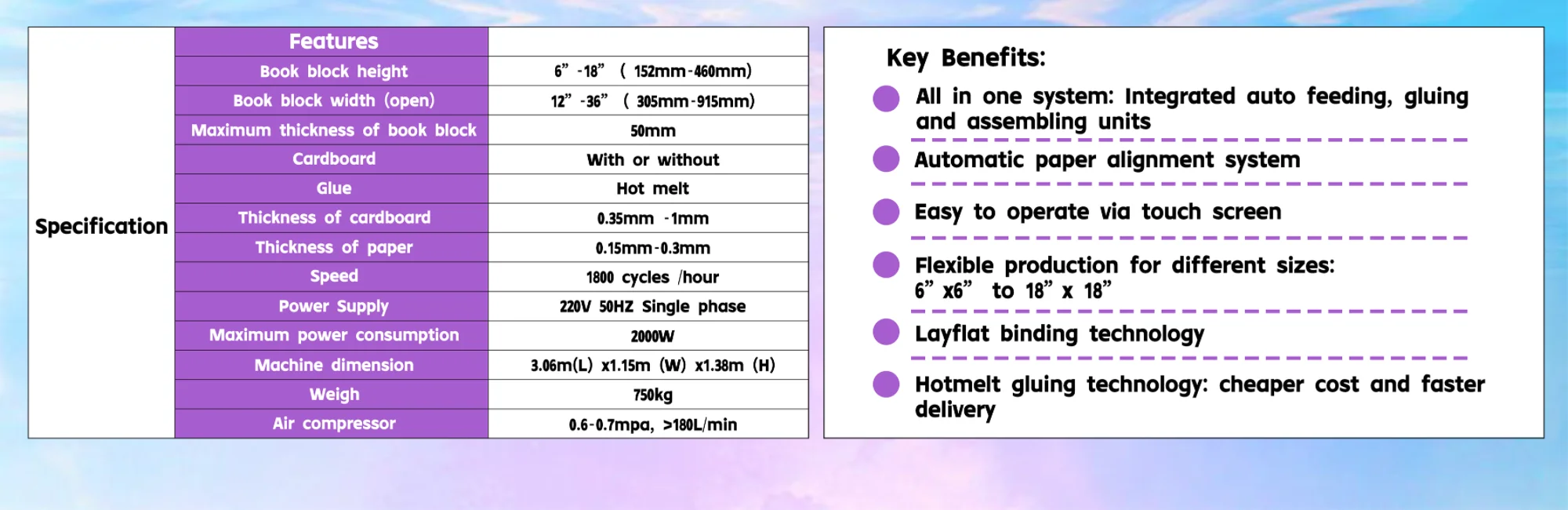

  • Specification parameters

      Key attributes

      Industry-specific attributes

      type
      Binding Machine
      automatic grade
      Automatic
      warranty
      1 Year
      Power
      2200w

      Other attributes

      condition
      New
      place of origin
      Guangdong, China
      brand name
      Layflat
      voltage
      220V 50HZ Single phase
      dimension(l*w*h)
      1.93m(L) x0.89m (W) x1.2m (H)
      weight
      380
      Product name
      Full Automatic Photo Book Maker
      Book block width
      6"-13" ( 152mm-330mm)
      Glue
      Hot melt
      Speed
      600 cycles /hour
      Thickness of cardboard
      0.35mm -0.8mm
      Thickness of paper
      0.2mm-0.3mm
      Power Supply
      220V 50HZ Single phase
      Maximum power consumption
      2000W
      Weigh
      380kg
      Air compressor
      >0.65mpa

      Packaging and delivery

      Selling units
      Single item
      Single package size
      210X100X140 cm
      Single gross weight
      770.000 kg
