Automatic Film Hot Melt Adhesive Paper & Spray Glue Machine Service Equipment Cover Glue Machine

Cover gluing machine is a semi automatic casing in machine. You may preset the trace of hot melt which needs to spray onto the cover. The machine sprays the hot melt onto the cover according to the pr...

  • Detailed information

      Video Description

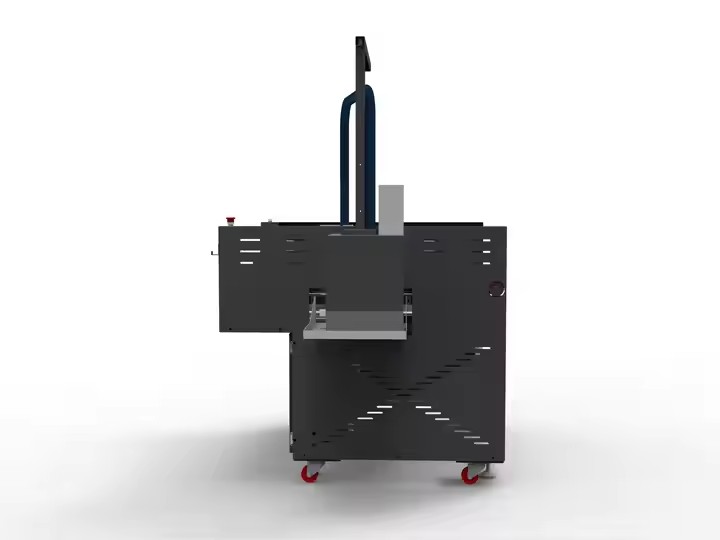

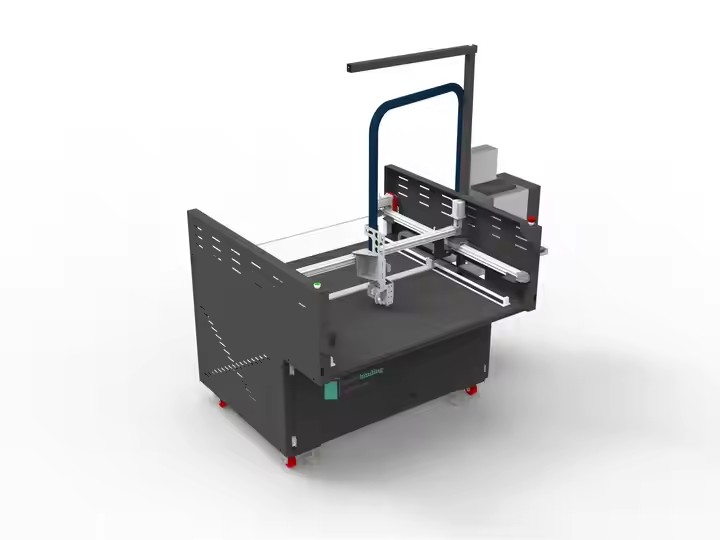

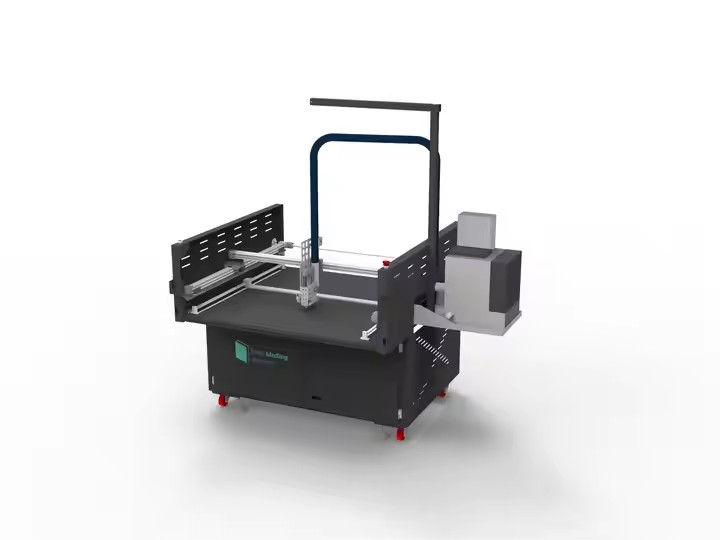

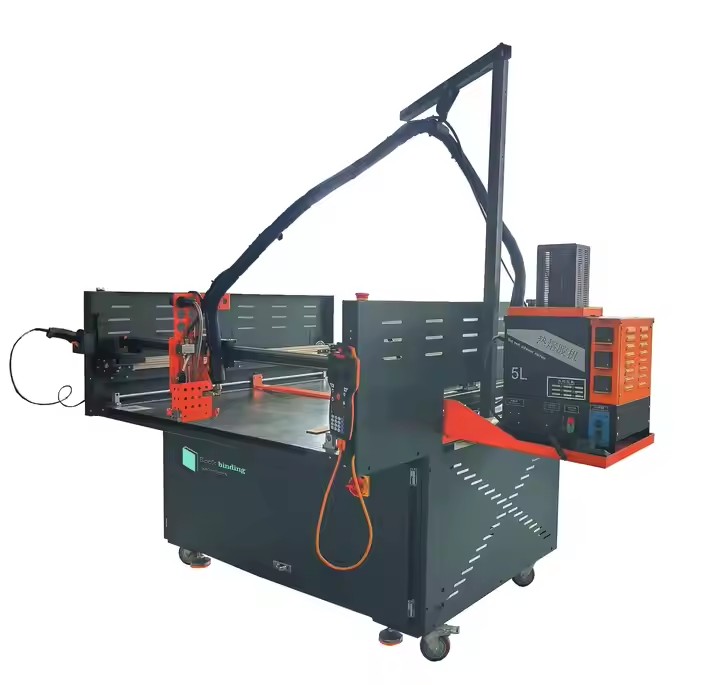

      Cover gluing machine

      Cover gluing machine is a semi automatic casing in machine. You may preset the trace of hot melt which needs to spray onto the cover. The machine sprays the hot melt onto the cover according to the preset data. The preset data can be selected from the control panel or use bar code scanner to read the data.
      Key Benefits:
      Hot melt gluing technology: cheaper cost and faster delivery; Hot melt glue to replace double side tape, it saves the cost of material and labor; Easy to operate via control panel or bar code scanner; Flexible production for different sizes and shapes; Small size to save space; Easy clean spray platform;


  • Specification parameters

      Key attributes

      Industry-specific attributes

      type
      Book cover making machine
      automatic grade
      Automatic
      warranty
      1 Year

      Other attributes

      condition
      New
      place of origin
      Guangdong, China
      brand name
      Layflat
      voltage
      220V 50HZ Single phase
      dimension(l*w*h)
      1.4m(L) x1.9m (W) x2.0m (H)
      weight
      100 KG
      Product name
      Cover gluing machine
      Movement direction
      Triaxial
      Maximum spray platform size
      900mm-900mm
      Height of spray
      15mm-68mm
      Size of spray
      10-15mm
      Capacity of hotmelt tank
      5L
      Glue
      Hot melt
      Power Supply
      220V 50HZ Single phase
      Maximum power consumption
      2500W
      Machine dimension
      1.4m(L) x1.9m (W) x2.0m (H)
